Laser Cutting Fume Absorber Dust Collector


  • Laser Cutting Fume Absorber Dust Collector
  • Laser Cutting Fume Absorber Dust Collector
  • Laser Cutting Fume Absorber Dust Collector
  • Laser Cutting Fume Absorber Dust Collector

Laser Cutting Fume Absorber Dust Collector

    Payment Type: L/C,T/T,D/P,Paypal
    Terms of Trade: FOB,CFR,CIF,EXW,CIP
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Box
    Productivity: 100sets/Month
    Brand: Moland
    Transportation: Ocean,Land
    Place of Origin: Jinan City, Shandong Province, China
    Supply Ability: 100sets/Month
    Certificate: CE, ISO9001,ISO14001
    HS Code: 8421399090
    Port: Qingdao

Basic Info

Model No.: MLWF800

Product Description

MOLAND manufactures a complete line of laser cutter fume extractor systems specifically designed for industrial processes that generate laser fumes. The smoke generated during the laser cutting process is actually comprised of very fine dust particles that can harm workers and equipment. These particulate contaminants can be properly controlled with MOLAND high-efficiency fume and dust collectors.


Dust purifier
· Suitable for: welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce

Performance description
·Integral structure, beautiful appearance, small area
· Anti-suction device, make the effect of cleaning more thorough
· Power supply condition monitoring: alarm for broken phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pneumatic condition monitoring: alarm of low pressure of gas source to prevent incomplete ash cleaning, differential gauge to visually show the use status of filter element, automatic pulse back blowing of high pressure difference
· Operation temperature monitoring: alarm system temperature is too high to prevent fire

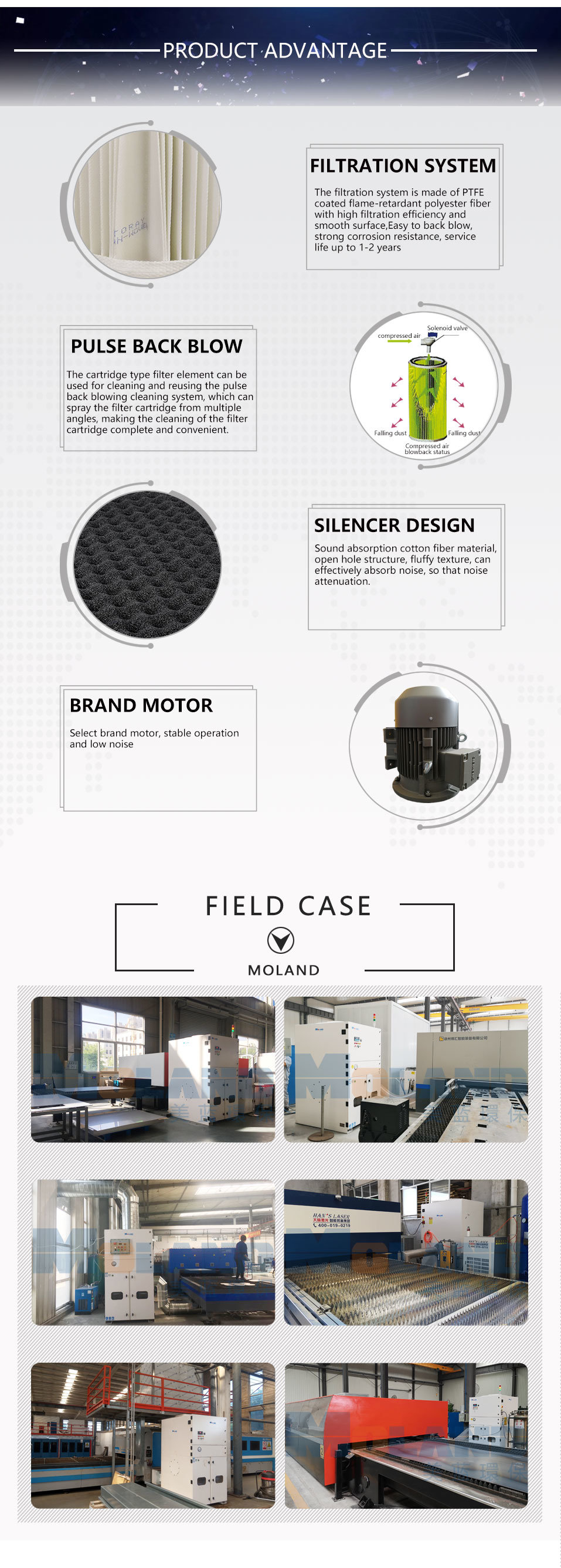

Standard Configuration

·Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· Spark trap (large particle dust pre-filter)

Spare parts

· Frequency conversion system
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm
· Suction duct
· Ash bucket

Recommended working condition
· Welding workstation
· Artificial Welding Station
· Plasma cutting and laser cutting
· Continuous working condition with large workload

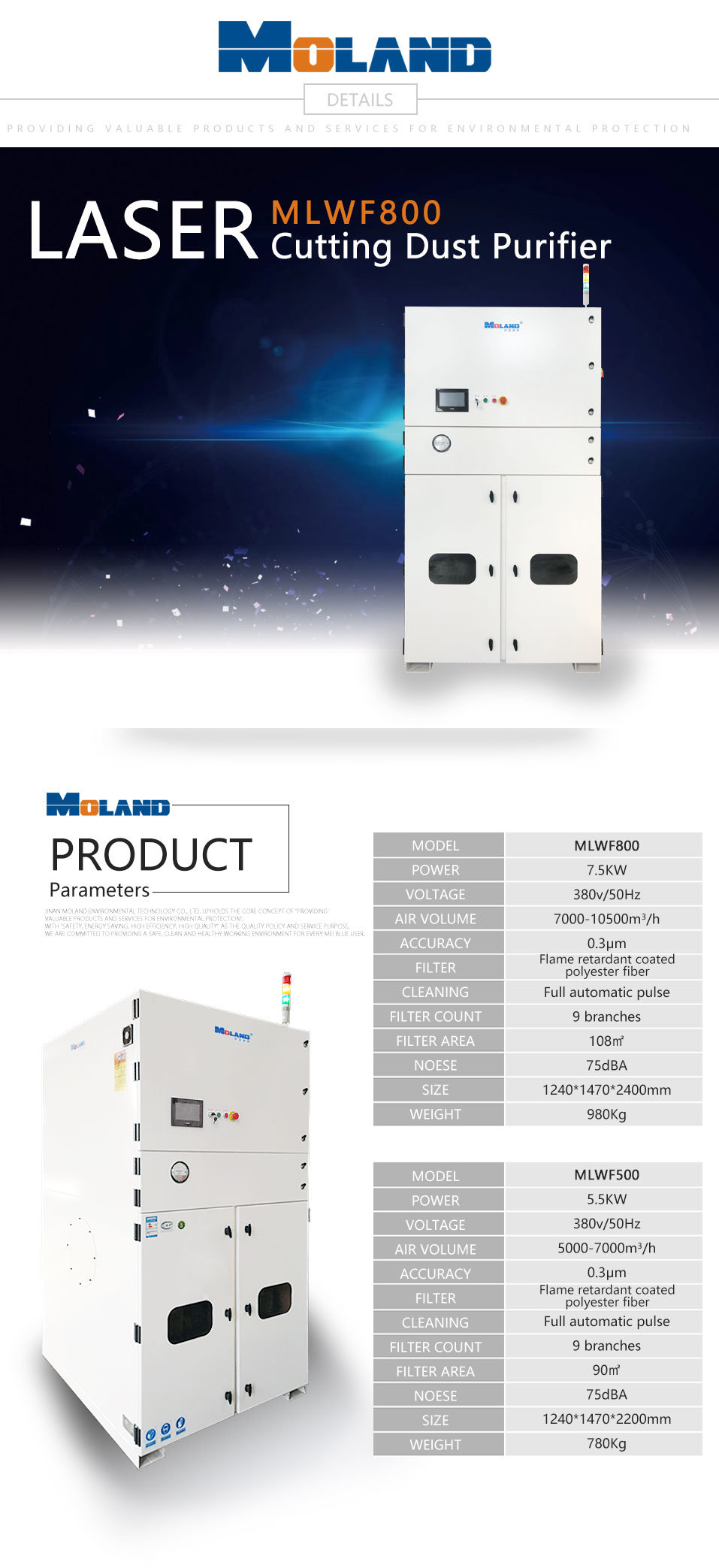

Power 7.5kw 5.5kw 3kw
Voltage 380V / 50Hz 380V / 50Hz 380V / 50Hz
Air Volume 7000-10500m³/h 5000-7000m³/h 3500-4500m³/h
Accuracy 0.3μm 0.3μm 0.3μm
Filter material PTFE Cartridge Filter PTFE Cartridge Filter PTFE Cartridge Filter
Filter Area 108m² 90m² 40m²
Filter Size ∅325*860mm (9 branches) ∅325*660mm (9 branches) ∅325*660mm (4 branches)
Cleaning Automatic dedusting Automatic dedusting Automatic dedusting
Noise 75dBA 75dBA 75dBA
Size 1240×1470×2400mm 1240×1470×2200mm 960*985*2080mm
Weight 980kg 800kg 310kg





Laser Cutting Fume Absorber
Smoke Dust Collector
Dust and Fume Extractor
Jinan Moland Environmental Tech Co.,Ltd



Established in 2016, Jinan Moland Environmental Tech Co., Ltd. is located in No. 11889 Jingshixi Road, Jinan Economic Development Zone. It is an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification system.

The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries. The company has passed the ISO 9001 quality management system certification, obtained the certification certificate of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents. Through continuous R&D and innovation, many products of the company have reached the international leading level.

Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
