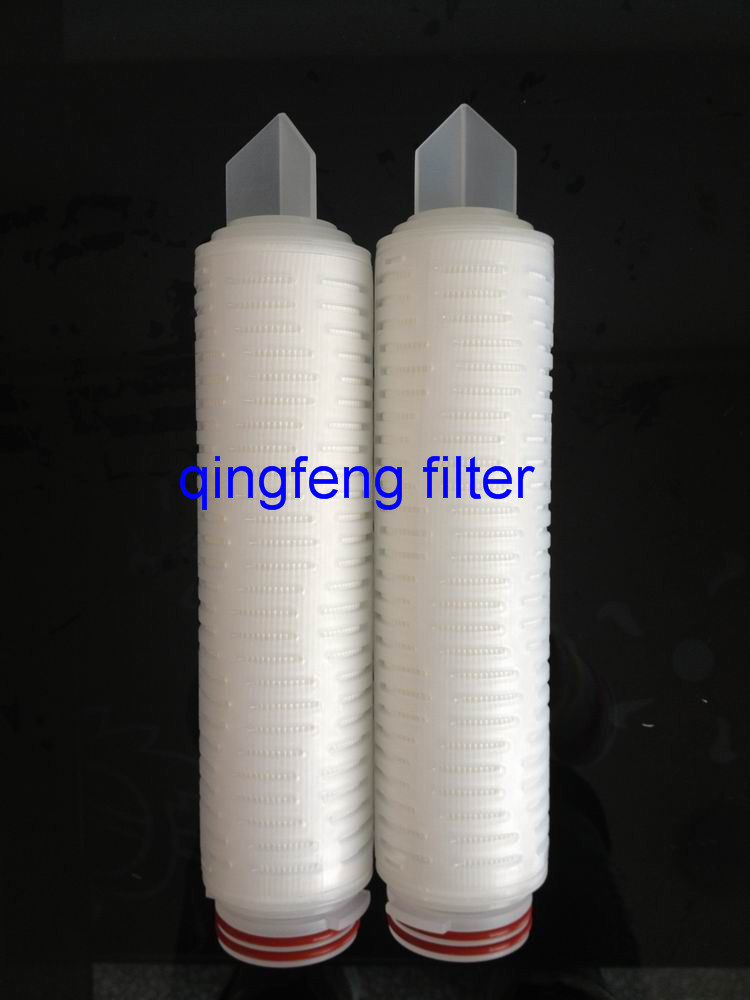

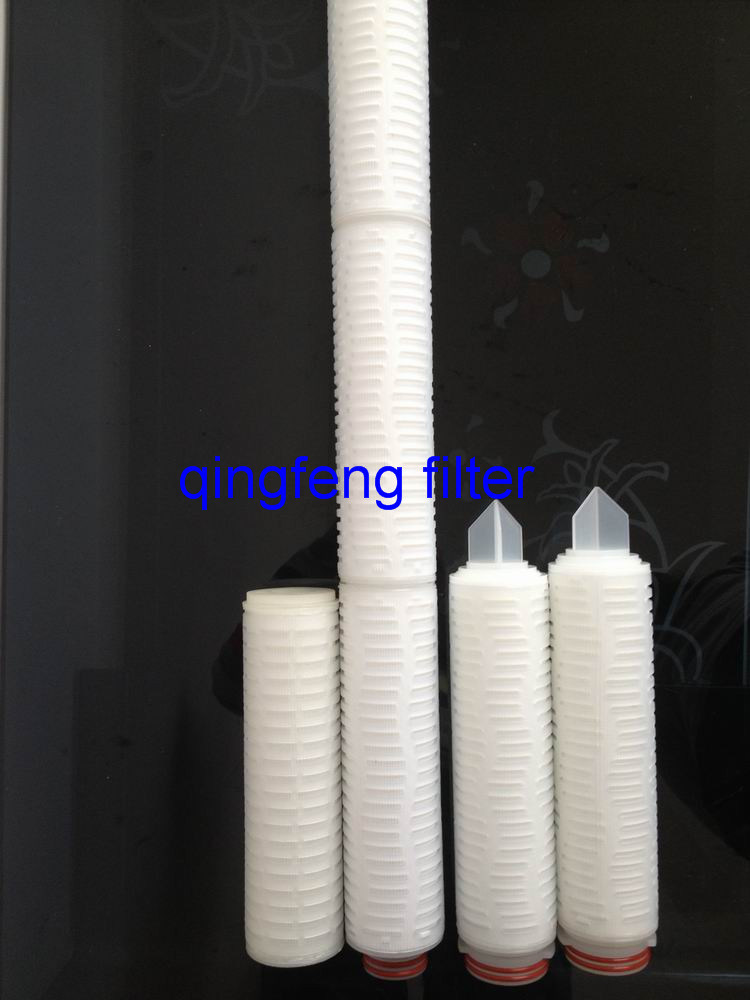

30" Pes Filter Media Water Testing Filter Cartridge
30" Pes Filter Media Water Testing Filter Cartridge
Payment Type: | L/C,T/T,D/P,Paypal,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
Min. Order: | 25 Piece/Pieces |
Delivery Time: | 10-15 Days |
Packaging: | Carton Packing |
---|---|
Productivity: | 100000PCS/Year |
Brand: | QingFeng,OEM |
Transportation: | Ocean,Land,Air |
Place of Origin: | china |
Supply Ability: | 100000PCS/Year |

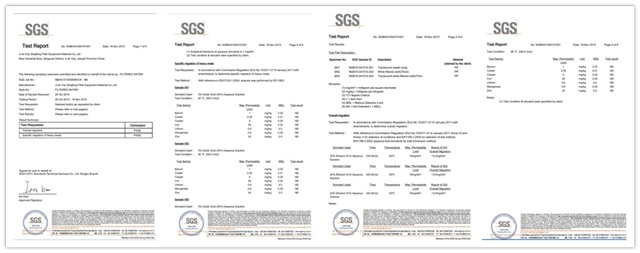

Certificate: | SGS and ISO9001 |
HS Code: | 8421999090 |
Port: | Shanghai,Shenzhen |
Basic Info
Model No.: PES pleated filter cartridge
Product Description
Introduction:
The filtration media of PES micropore filter cartridge is Hydrophilic PES filter membrane. High porosity(about ≥80%) and geometrically unique pores of the PES cartridge contribute to high throughputs for difficult-to-filter solutions. It is constructed of two materials Polyethersulfone filter membrane and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: unique hydrophily, no including surfactant and lubricant, so it provides wide filtration pore size and high folow rate, its wide range of PH values and lower adsorbance of protein and valuable biologicals, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressures. All products have passed 100% integrity testing.
Specification:
Filter medium: hydrophily PES membrane
Support layer: PP
Filter cage: PP
Pore size: 0.1, 0.2, 0.45, 0.65, 1 (um)
Length: 5", 10", 20", 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: ≥0.57square meter/10inch
Diameter: 68mm
Working temperature: ≤60ºC
Max. operating temperature:90ºC, 0.01Mpa
Max. bear temperature: 140ºC, 0.28Mpa
Max. positive pressure: 0.42Mpa (23ºC)
PH value: 2--13
Sterilizing temperature: 121ºC 30min
Others: special requirement of diameter and end caps can be customized
Seloct filter cartridge, refer to P10 (Interface/End caps)
Typical Applications:
Pharmacy industry; Food industry; Electronic industry etc.
Materials of Construction | |
filter media | Highly Asymmetric, Hydrophilic PES |
Core, Cage | PP |
End Caps | PP |
O-rings/Gasket | Silicone/EPDM/Viton |
Sealing technology | Thermal Bonding, No Adhesives |
Dimensions | |
Diameter | Φ 68 (2.67 in) |
Length(in) | 5, 10, 20, 30, 40 |
Filtration Area | |
≥ 5.7 ft2/10 in (≥ 0.53 m2/250 mm) | |
Pore Size, μm | |
0.1, 0.22, 0.45, 0.65,1.0 | |
Maximum Forward Differential Pressure | |
4.2 bar@23ºC | |
Integrity Test- water bubble point at 23 ºC | |
0.22μm:≥3100mbar (44.96psi) | |
0.45μm:≥1800mbar (26.1psi) | |
Sanitization | |
May be hot water sanitized for 30 cycles using purified water at 85ºC(185ºF) for 30 minutes |
Company Profile:

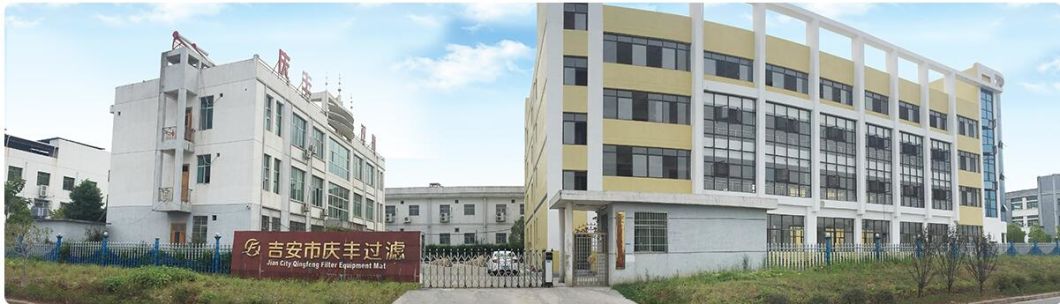

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
Product Categories : Micropore Filter Cartridge > PES Pleated Filter Cartridge
