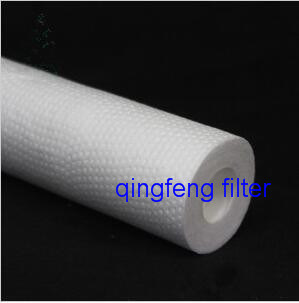

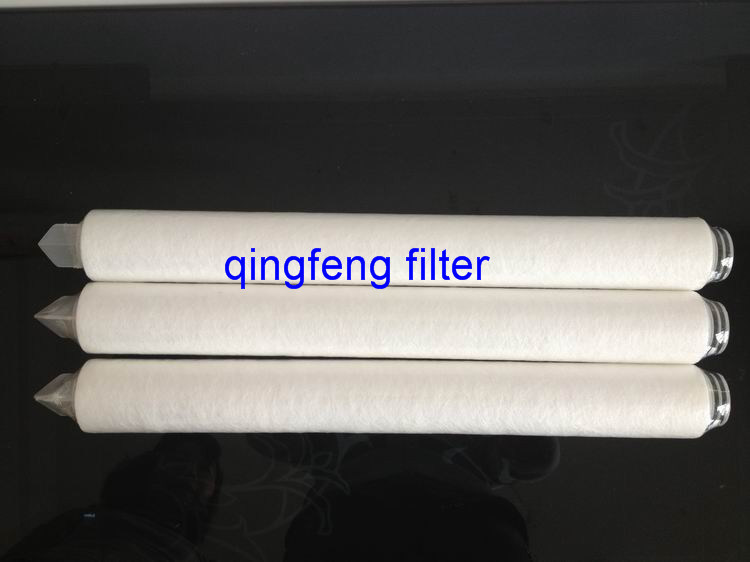

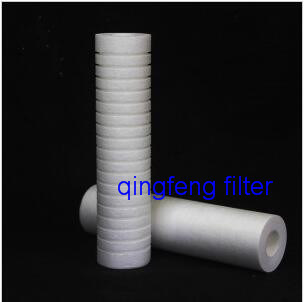

PP Sediment Melt Blown Pleated Filter Cartridge
PP Sediment Melt Blown Pleated Filter Cartridge
| Payment Type: | L/C,T/T,D/P,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Min. Order: | 25 Piece/Pieces |
| Delivery Time: | 10-15 Days |
| Packaging: | Carton Packing |
|---|---|
| Productivity: | 100000PCS/Year |
| Brand: | QingFeng,OEM |
| Transportation: | Ocean,Land,Air |
| Place of Origin: | china |
| Supply Ability: | 100000PCS/Year |
| Certificate: | SGS and ISO9001 |
| HS Code: | 8421999090 |
| Port: | Shanghai,Shenzhen |
Basic Info
Model No.: PP Melt Blown filter cartridge
Product Description
PP Melt Blown Cartridge Filter Main Features:
1.Melt Blown PP Cartridge with One step melt-blown forming with polyproplene;
2,Melt Blown PP Cartridge with High flow rates;
3,Excellent ability of dirty-holding ;
4,Low cost ,economic choice for all prefiltration ;
5,Easy installation ,replacement and maintenace.
Specifications & Technical data
Material Membrane: PP fibre
Core: polypropylene O ring/Gasket: Silicone/Viton/TEV/EPDM
Specifications: Pore size (um): 0.5-100
Outer Diameter(OD): 60/62mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: DOE, SOE (code2, code3, code7, code8)
Technical data: Normal working temperature: 50 ºC/ 108ºF
Max. working temperature: 90 ºC/ 194ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strict test before packing
Applications: (mainly for prefiltration or coarse filtration)
1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Cleaning for sewage processing
Quality Assurance:

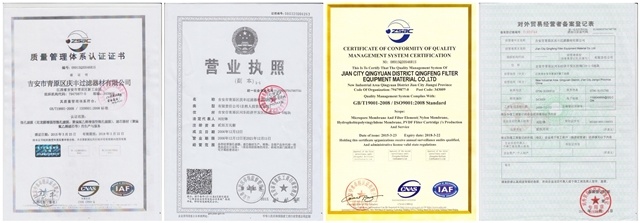

1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing
| 5 Micron PP Melt Blown filter cartridge for Water treatment | ||||
| 1.Product Describtion: | ||||
| PP melt blown filter cartridge | 10" | 20" | 30" | 40" |
| Length | 254mm | 508mm | 762mm | 1016mm |
| Flow rate (t/h) | 0.5 | 1 | 1.5 | 2 |
| Specification | Melt blown pp filter cartridge | |||
| Precision (um) | 0.5-100 | |||
| Outer diameter(mm) | 62-65mm | |||
| Inner diameter | 28-30mm | |||
| Max temperature | PP(90°C), TZM(120°C) | |||
| Remark | Filter precision, length can be optional | |||
PP Melt-blown Filter CartridgeMain Features:
1,One step melt-blown forming with polyproplene;
2,High flow rates;
3,Excellent ability of dirty-holding ;
4,Low cost ,economic choice for all prefiltration ;
5,Easy installation ,replacement and maintenace.
Specifications & Technical data
Material Membrane: PP fibre
Core: polypropylene O ring/Gasket: Silicone/Viton/TEV/EPDM
Specifications: Pore size (um): 0.5-100
Outer Diameter(OD): 60/62mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: DOE, SOE (code2, code3, code7, code8)
Technical data: Normal working temperature: 50 ºC/ 108ºF
Max. working temperature: 90 ºC/ 194ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strict test before packing
Applications: (mainly for prefiltration or coarse filtration)
1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Cleaning for sewage processing
Quality Assurance:
1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing
| 5 Micron PP Melt Blown Filter Cartridge for Water treatment | ||||
| 1.Product Describtion: | ||||
| PP melt blown filter cartridge | 10" | 20" | 30" | 40" |
| Length | 254mm | 508mm | 762mm | 1016mm |
| Flow rate (t/h) | 0.5 | 1 | 1.5 | 2 |
| Specification | Melt blown pp filter cartridge | |||
| Precision (um) | 0.5-100 | |||
| Outer diameter(mm) | 62-65mm | |||
| Inner diameter | 28-30mm | |||
| Max temperature | PP(90°C), TZM(120°C) | |||
| Remark | Filter precision, length can be optional | |||
Contact us if you need more details on Melt Blown PP Spun. We are ready to answer your questions on packaging, logistics, certification or any other aspects about PP Melt Blown Cartridge Filter、Melt Blown PP Cartridge. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Micropore Filter Cartridge > PP Melt Blown Filter Cartridge
